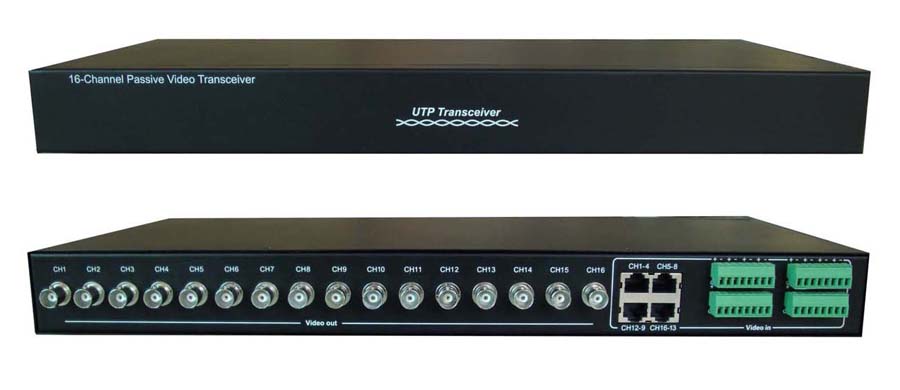

16CH Passive CCTV Rackmount Video Balun(UTP Video). Push-pin Terminal Block & RJ-45 Connectors. Transmit Real-time Security Camera Video 16 Channel 1,250ft color / 2,000ft B&W using CAT5 or UTP(unshielded twisted pair) cable. Perfect for larger CCTV installations where port density and camera number growth are prevalent. No power required.
19" 1U RACK MOUNT
Tech Info:
|
Model NO. |
VT-416P |
||||||
|
Specs |
19" 1U RACK MOUNT 16ch Passive Transceiver |
||||||
|
Video |
Frequency respons: DC-6Mhz Common-mode/Differential-mode |
||||||
|
Audio/data |
NO |
||||||
|
Power |
NO |
||||||
|
Impedance |
Coax,male BNC:75ΩUTP(Screwless)Terminal Block or |
||||||
|
Wire type |
One Unshielded Twisted Pair 24-16AWG(0.5-1.31mm) Per video signal:DC Loop Resistance 52 ohms per 1,000 ft(18 ohms per 100m) |
||||||
|
Surge suppression |
6000V 1.2μ S*5μ S |
||||||
|
Control |
NO |
||||||
|
UTP Port |
RJ45 AND Terminal Block |
||||||
|
Dimensions(mm) |
432*185*50 |
||||||
|
Weigth(g) |
2200 |
||||||
|
Environment |
Temperature:-10~+50℃ Humidity:0~95% |
||||||
